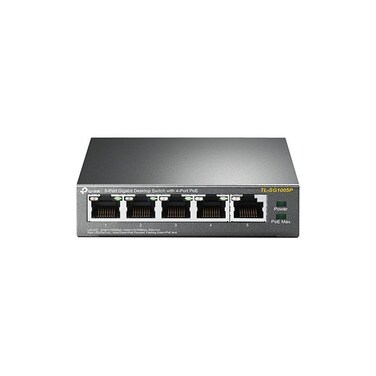

TP-Link Tl-Sg1005 5XGB (4Xpoe) 56W Desktop Steel Switch

Desktop switch with 5 gigabit ports, 4 ports with PoE

DESCRIPTION

The unmanaged TL-SG1005P is equipped with five ports with 10/100/1000 Mbps non-configurable transfer rates and offers 4 ports with Power over Ethernet (PoE). Can automatically detect and power any PDAs (Powered Devices) that meet the IEEE 802.3af protocol. In this embodiment, the power supply is transmitted together with data over the same cable, allowing you to extend your network even to places where there are no electrical connections or sockets but where you want to use devices such as access points, IP cameras or IP phones,

5 ports with RJ45 connector and 10/100/1000 Mbps transfer rates

The 4 ports have PoE power and transmit data and power over one cable

It works with powered devices that meet the IEEE 802.3af protocol and can easily expand both home and corporate networks

The 802.1p/DSCP QoS protocol allows smooth operation for latency sensitive applications

No configuration or installation is required

TECHNICAL SPECIFICATIONS

HARDWARE FEATURES

Interface

5 10/100/1000Mbps RJ45 Ports

AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

100BASE-TX: UTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)

EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity

Fanless

Power Consumption

63.31W (max. With 56w PoE device connected)

4.26W (max. PoE device connected)

External Power Supply

External Power Adapter (Output: 48VDC/1.25A)

PoE Ports (RJ45)

Standard: 802.3 af compliant

PoE Ports: Port1 - Port4

Power Supply: 56W

Backbound Bandwidth

10Gbps

Mac Address Table

2K

Dimensions (W x D x H)

3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)

SOFTWARE FEATURES

Advanced Features

Compatible with IEEE 802.3af Compliant PDs

Priority Function

Mac Address Auto-Learning And Auto-Aging

EEE802.3x Flow Control

802.1p/DSCP QoS

IGMP Snooping

Transfer Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG1005P, Power Adapter, Installation Guide

Consumption

4.26 watts (max. No PD connected)

63.31 watts (max with 56w PD connected)

Environment

Operating Temperature: 0? ~ 40? (32? ~ 104?)

Storage Temperature: -40? ~ 70? (-40? ~ 158?)

Operating Humidity: 10% ~ 90% RH non-condensing

Storage Humidity: 5% ~ 90% RH non-condensing
