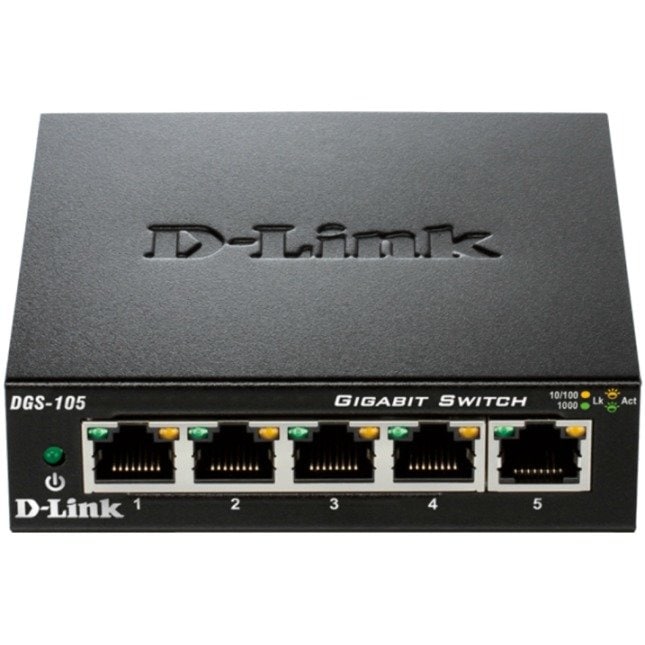

D-Link Dgs-105 Metal 5-Port 10/100/1000 Switch
AED 89.00AED 119.00(Inc. VAT) 25% OFF
D-Link DGS-105 metal 5-port 10/100/1000 Switch
OVERVIEW
The DGS-105 5-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity.
SPECIFICATIONS
KEY FEATURES
Built-in D-Link Green Technology
Inexpensive Gigabit solution for Home/SOHO
Five 10/100/1000 Mbps Gigabit ports
10 Gbps switching fabric
Auto MDI/MDIX crossover for all ports
Secure store-and-forward switching scheme
Full/half-duplex for Ethernet/Fast Ethernet speeds
IEEE 802.3x Flow Control
Supports 9, 000 Byte Jumbo Frames
Supports IEEE 802.1p QoS (4 Queues, Strict Mode)
Supports Cable Diagnostics Function
RoHS compliant
Plug-and-play installation
IGMP Snooping - multicast video/IPTV
STANDARDS
IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x Flow Control
IEEE 802.1p QoS
IEEE 802.3az Energy Efficient Ethernet (EEE)
PROTOCOL
CSMA/CD
DATA TRANSFER RATES
Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Gigabit Ethernet: 2000 Mbps (full duplex)
TOPOLOGY
Star
NETWORK CABLES
10BASE-T: UTP CAT 3, 4, 5/5e (100m max), EIA/TIA-586 100-ohm STP (100m max)
100BASE-T, 1000BASE-T: UTP CAT 5/5e (100m max.), EIA/TIA-568 100-ohm STP (100m max)
MEDIA INTERFACE EXCHANGE
Auto MDI/MDIX adjustment for all ports
LED INDICATORS
Per port: Link/Activity/Speed
Per device: Power
TRANSMISSION METHOD
Store-and-forward
MAC ADDRESS TABLE
2K
MAC ADDRESS LEARNING
Automatic update
PACKET FILTERING/FORWARDING RATES
Ethernet: 14, 880 pps per port
Fast Ethernet: 148, 800 pps per port
Gigabit Ethernet: 1, 488, 000 pps per port
RAM BUFFER
128 KB per device
DC INPUT
External 5 V/1 A Level &, V&, Power Adapter
POWER CONSUMPTION
Power On (Standby): DC input: 0.5W, AC input: 1.0W
Maximum: DC input: 2.01W, AC input: 3.10W
HEAT DISSIPATION
Power On (Standby): AC input: 3.41 BTU/h
Maximum: DC input: 6.854 BTU/h
MTBF
1, 688, 338 hours
OPERATING TEMPERATURE
0 to 50° C
STORAGE TEMPERATURE
10 to 70° C
OPERATING HUMIDITY
10% to 90% RH non-condensing
STORAGE HUMIDITY
5% to 90% RH non-condensing
DEVICE DIMENSIONS (WXDXH)
100 x 98 x 28 mm
CERTIFICATIONS
FCC Class B
ICES-003 Class B
CE Class B
C-Tick Class B
VCCI Class B
cUL
CB
